Three-Phase 5MVA Oil-Immersed Pad-Mounted Transformer – Compact Design with Low Loss

Three-Phase 5MVA Oil-Immersed Pad-Mounted Transformer – Compact Design with Low Loss

Name: Three-Phase 5MVA Oil-Immersed Pad-Mounted Transformer – Compact Design with Low Loss
Brand: Yawei
Rating: 5.0 (8 reviews)

ZGS-5000kVA Three-Phase Pad-Mounted Transformer – High-Efficiency Distribution Solution

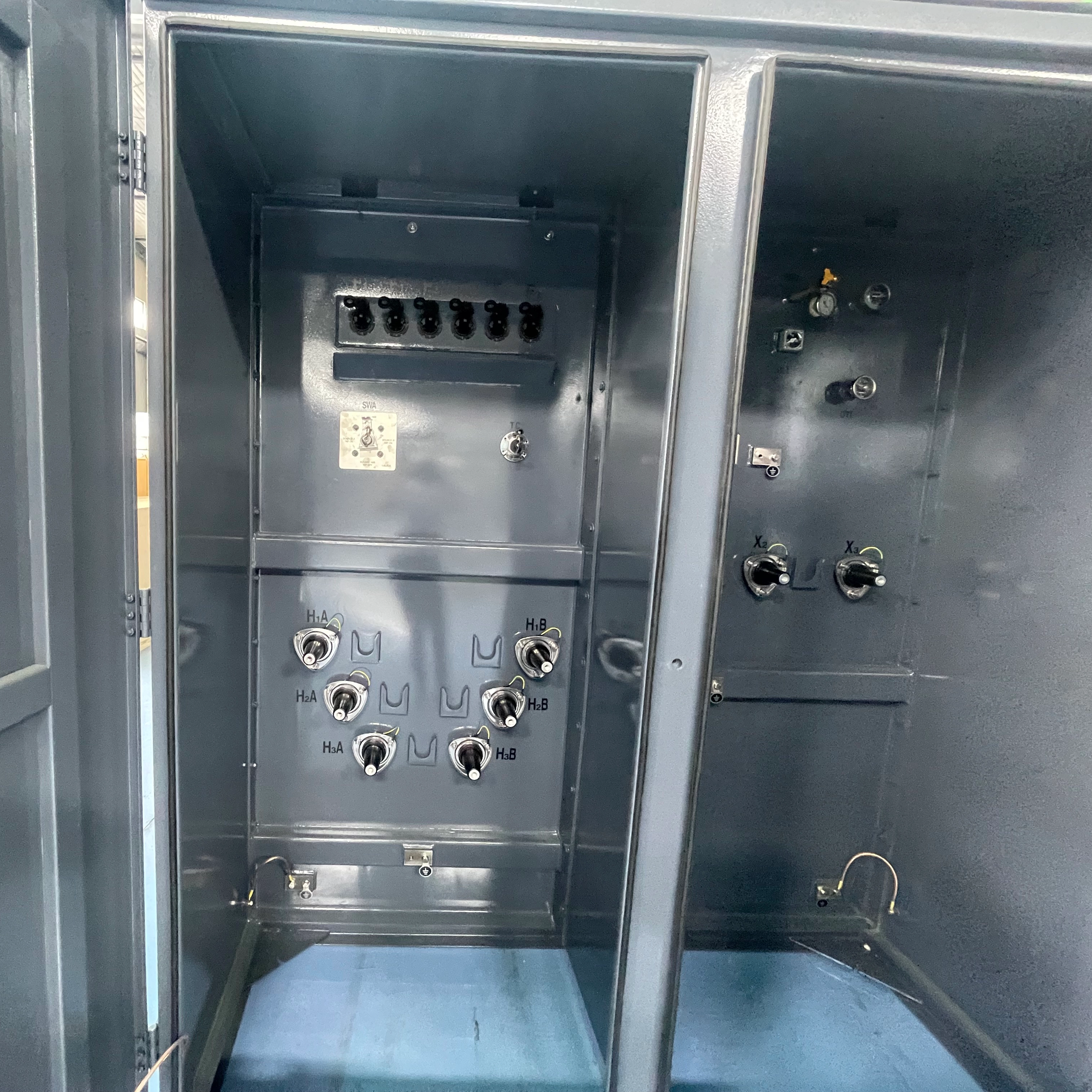

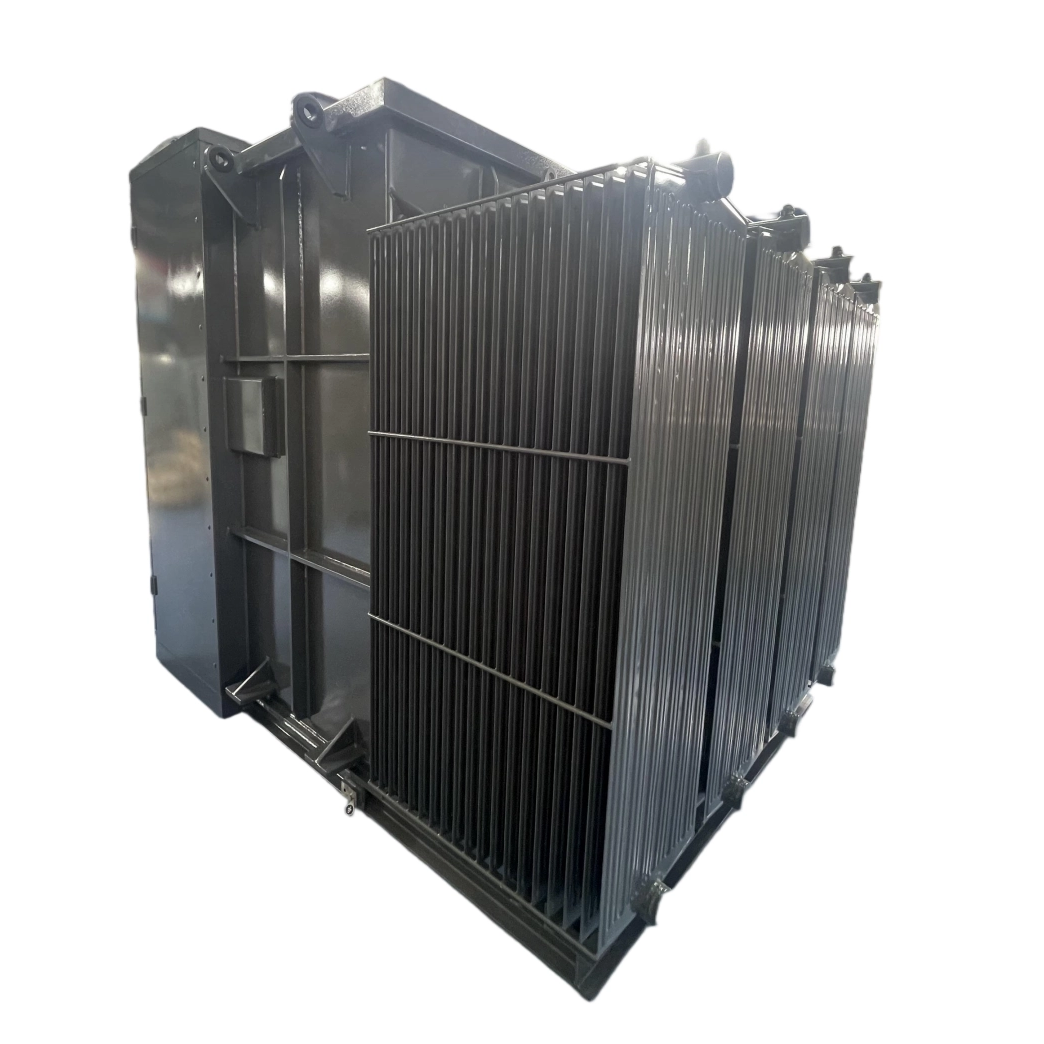

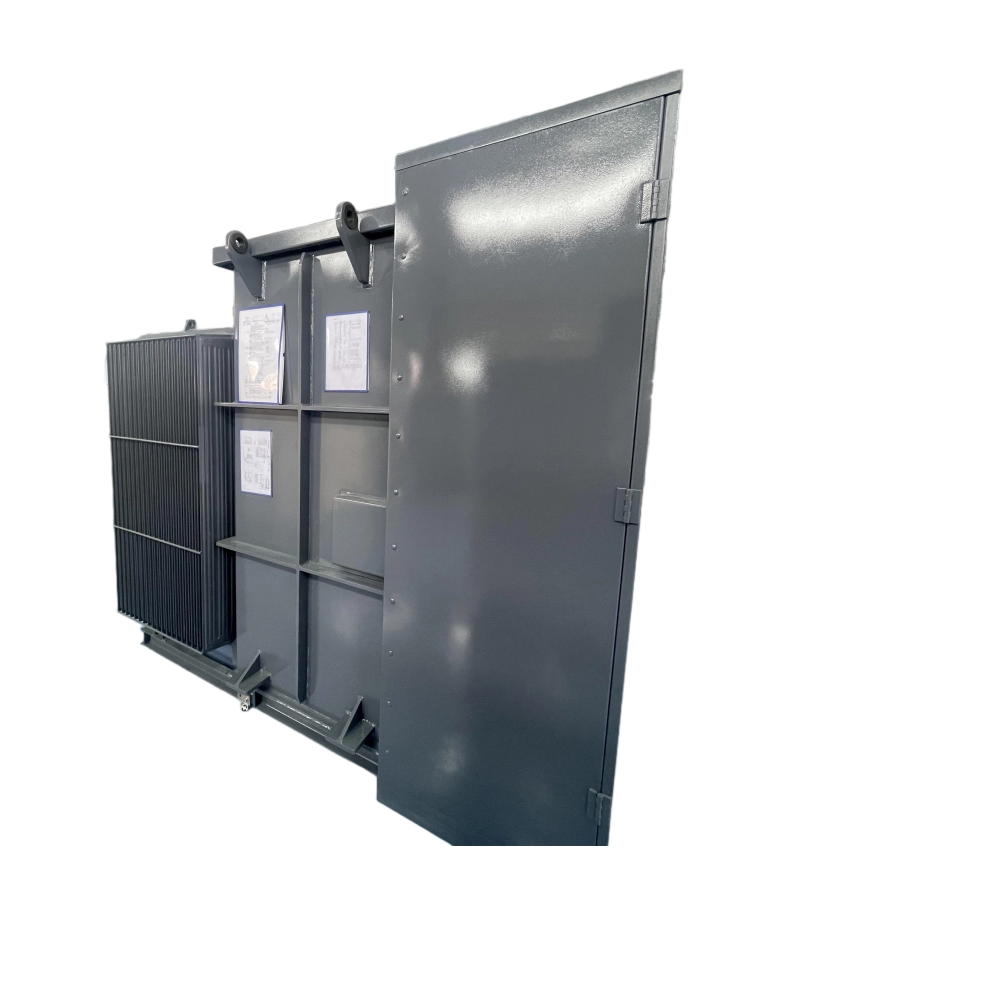

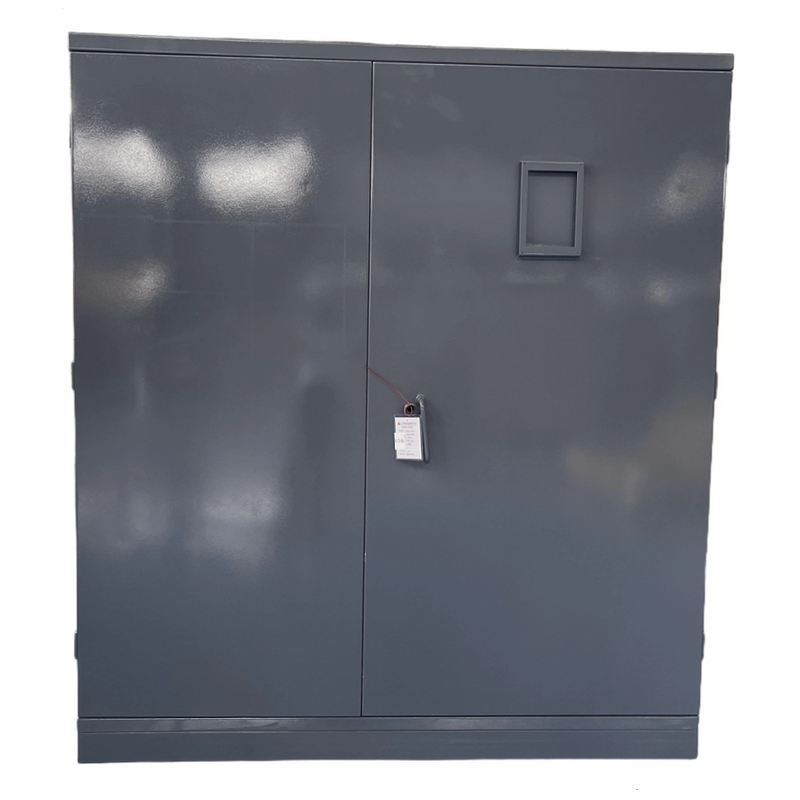

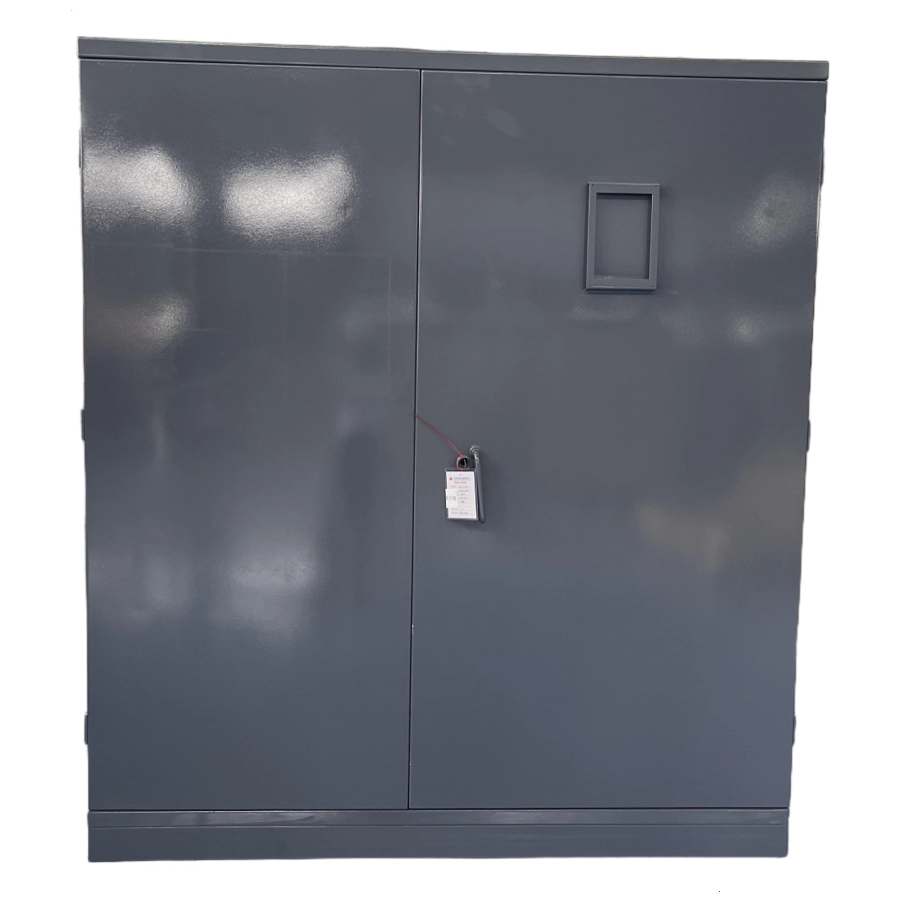

This 5000kVA three-phase pad-mounted transformer is engineered in accordance with ANSI/IEEE standards, featuring a compact, integrated clamshell design that combines the transformer core, load-break switchgear, and protective fuses within a single sealed enclosure—significantly reducing installation footprint and site preparation requirements.

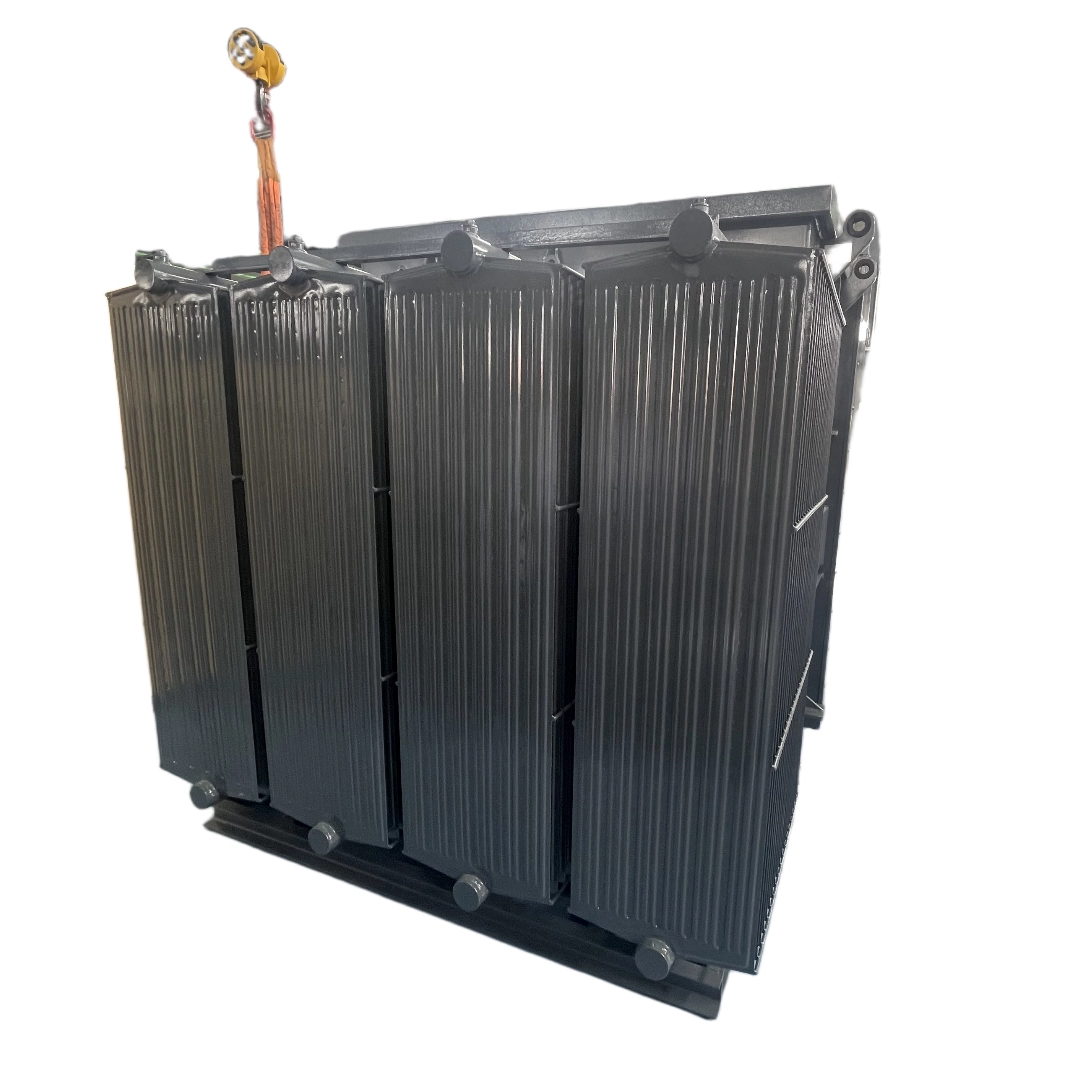

Constructed with premium cold-rolled grain-oriented silicon steel laminations and high-conductivity copper windings, the unit delivers ultra-low no-load losses, exceptional energy efficiency, and reliable operation under continuous loading. Comprehensive protection systems—including overvoltage relays, overcurrent protection, oil temperature monitors, and pressure relief devices—ensure safe and dependable performance throughout its long service life.

Ideal for outdoor distribution applications across industrial parks, commercial complexes, residential subdivisions, and renewable energy installations, this transformer offers straightforward pad-mounting installation, minimal routine maintenance, and robust weather-resistant construction that performs reliably in diverse environmental conditions.

Available Options:

Winding Material: Copper (standard) or Aluminum (optional)

Lead Time: 30 to 45 days upon order confirmation

Enclosure Color: Customizable to customer specifications

Voltage Ratings: Customizable to meet project requirements

Quantity:
Availability:





Inquire Add to Basket

Model:
ZGS-5000
Brand:
Yawei

Three Phase Pad Mounted Transformer Oil Immersed Transformer Long Life-Span Transformer

PRODUCT CATEGORY

Product Description

This 4800kVA three-phase American-style transformer complies with ANSI standards. With an all-in-one integrated structure, it integrates the main body, switching and protection components, occupying less space and enabling quick on-site installation. Made of high-grade silicon steel and pure copper windings, it features low power loss, high operating efficiency and excellent running stability.

Built-in comprehensive protection devices effectively guard against overcurrent, overvoltage and overheating risks. Designed for outdoor use, it resists moisture, corrosion and temperature changes, ideal for industrial zones, commercial complexes and residential power distribution projects, with minimal daily maintenance required.
