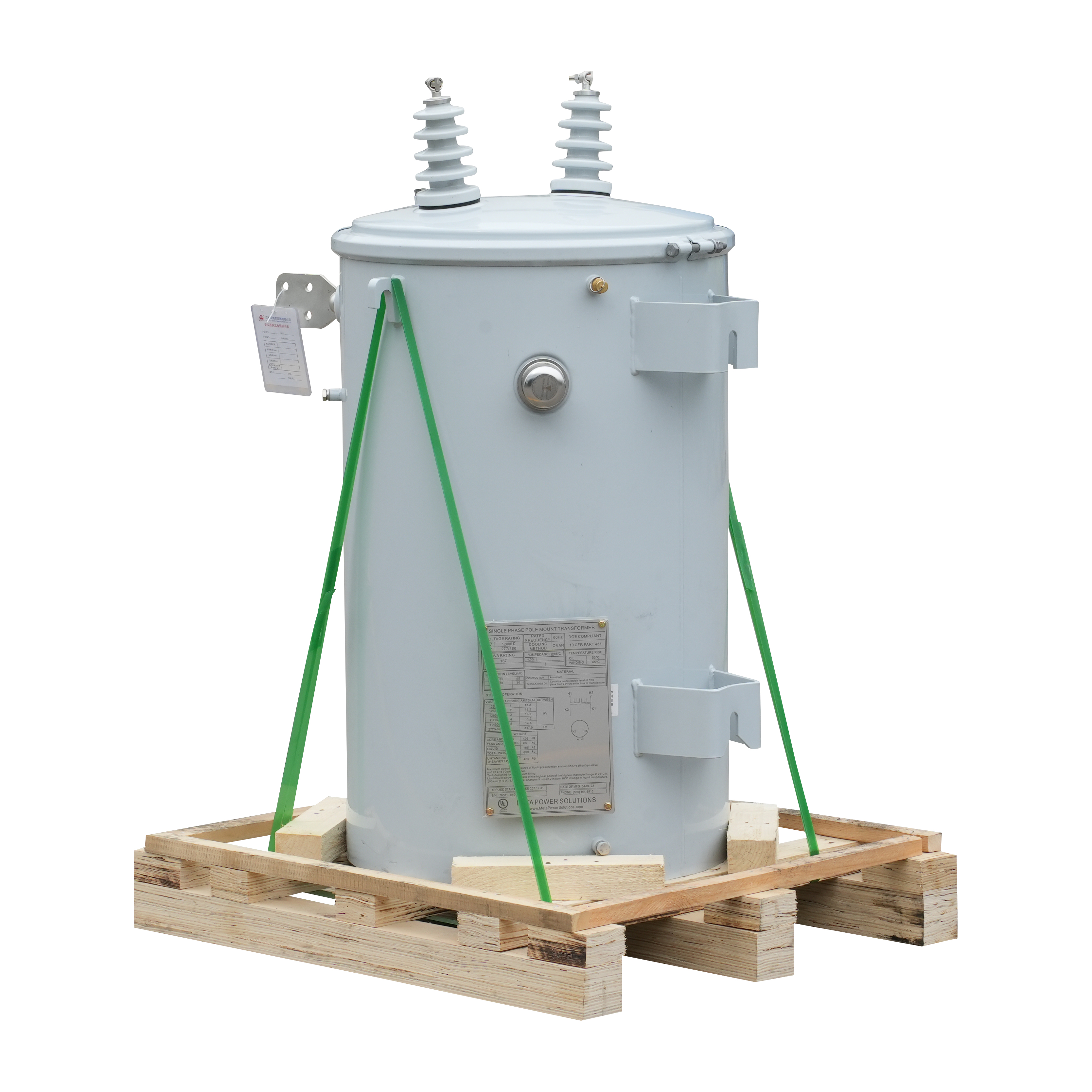

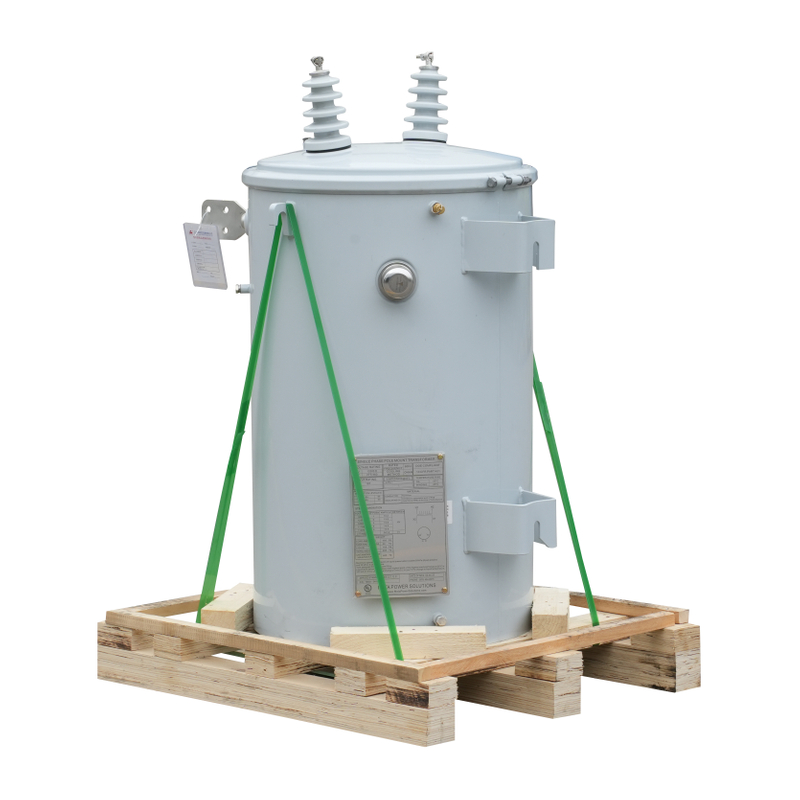

Yawei’s 5 kVA single-phase pole-mounted transformer is a high-performance core component for medium and low-voltage power distribution networks. Fabricated with top-tier raw materials including high-grade grain-oriented silicon steel sheets and oxygen-free copper windings, it is specially engineered to stably supply power for residential daily electricity demand, commercial facility operations, and small-scale industrial production loads in both urban and rural regions. The transformer is filled with eco-friendly, biodegradable dielectric fluid, which not only delivers outstanding fire safety performance but also effectively reduces internal component wear, thereby extending the equipment’s service life significantly.
| Quantity: | |
|---|---|
D-M-5
YAWEI ELECTRIC boasts decades of professional experience in the design and production of 5kVA Conventional Type Single Phase Pole Mounted Transformers. Our products strictly adhere to key international standards including IEC 60076, ISO 9001, IEEE C57.12.00 and other widely recognized specifications, guaranteeing outstanding safety, stable performance and long‑term operational reliability.
As a compact and practical power distribution solution, the YAWEI 5kVA single‑phase pole‑mounted transformer is mainly installed on utility poles for outdoor power distribution systems. It is widely applied in residential power supply, light industrial scenarios and small‑scale commercial facilities, delivering efficient energy conversion and consistent, secure power output.
This series supports a broad range of voltage configurations: converting primary voltages from 2.4kV up to 34.5kV (including typical systems like 12470Y/7200, 13200Y/7620 and 14400GrdY/8320) to standard secondary outputs such as 120/240V split‑phase or 277V.
High-grade grain-oriented silicon steel sheets minimize core losses, while oxygen-free copper windings reduce copper losses and improve conductive efficiency. This rugged construction resists wear and tear, extending the transformer’s service life and reducing long-term replacement and maintenance costs for operators.
Filled with biodegradable, fire-resistant dielectric fluid (mineral oil/FR3 optional), this outdoor pole-mounted distribution transformer delivers superior fire safety for residential and public areas, while effectively reducing internal component corrosion and wear. The sealed structure prevents oil leakage, ensuring environmental compliance for outdoor installation.
Optimized winding and core design reduces no-load and load losses, cutting operational energy costs over the transformer’s lifespan. Its pole-mounted configuration minimizes line losses in localized power distribution, improving energy efficiency for rural and suburban distribution networks.
With a fully sealed, corrosion-resistant structure and IP-rated outdoor protection, this residential single-phase power transformer withstands extreme weather, temperature fluctuations, and harsh outdoor conditions. It supports reliable operation in remote, underserved regions with minimal on-site maintenance.
