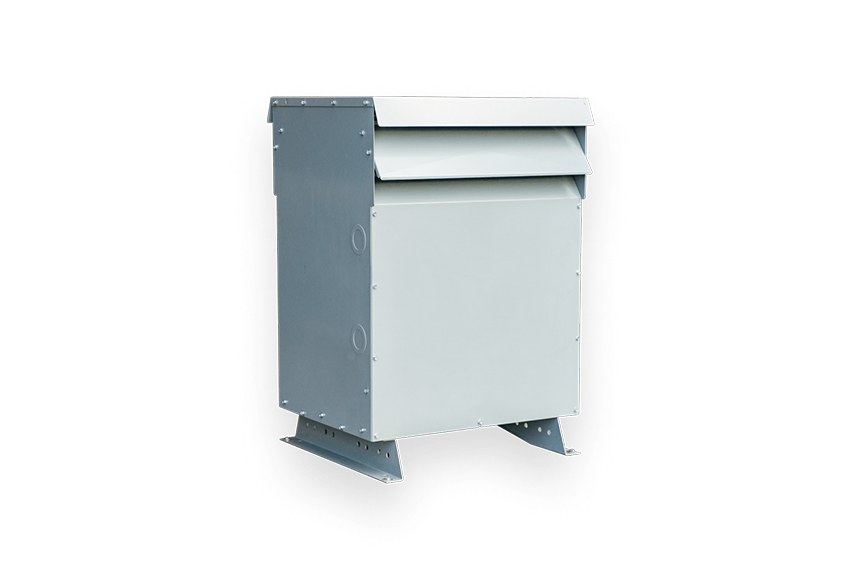

Our industrial SCR drive isolation transformer is a high-performance power transformer purpose-built to match the unique operating characteristics of silicon-controlled rectifier (SCR) systems and other nonlinear loads. Unlike general-purpose isolation transformers, this YAWEI-engineered solution integrates targeted design optimizations to resolve critical power quality challenges of SCR-based equipment, delivering reliable, safe, and efficient power supply for demanding industrial and commercial operations. As a specialized SCR system isolation transformer, it eliminates core pain points including harmonic pollution, voltage spikes, and ground loop interference, protecting your critical equipment and minimizing unplanned downtime.
Equipped with specialized winding structures and high-grade magnetic core materials, our harmonic suppression isolation transformer effectively mitigates 3rd, 5th, and 7th harmonic distortions from SCR switching, typically reducing total harmonic distortion (THD) to ≤5%. This prevents harmonic feedback from contaminating the mains grid, avoiding compliance violations and extending the service life of sensitive downstream equipment.
We adopt H-class (180℃) or higher insulation materials, with a reinforced structure that withstands transient overvoltages up to 3000VAC/min. Full electrical isolation between primary and secondary windings eliminates ground loop interference and drastically reduces electric shock risks for on-site personnel.
Optimized coil arrangement minimizes leakage inductance to ≤100nH, reducing voltage spikes during SCR on/off switching and improving power system dynamic response. This low leakage inductance isolation transformer ensures stable power delivery even during rapid load changes, supporting continuous production workflows.
Engineered to tolerate current distortion, frequent load fluctuations, and 150% rated load for 60 seconds, it adapts seamlessly to intermittent load characteristics of SCR drives and rectifiers. Enhanced heat dissipation structures manage elevated heat from nonlinear loads, ensuring stable long-term operation.
Parameter | Standard Specification | Customization Availability |
Rated Power | 0.5kVA – 2000kVA | Full custom range for specialized applications |
Input Voltage | 208V/400V/480V/690V | Customizable for global grid standards |
Output Voltage | 220V/380V/415V | Tailored to specific load requirements |
Rated Frequency | 50Hz/60Hz | Dual-frequency configuration available |
Insulation Class | H-class (180℃) / F-class (155℃) | Higher grade for extreme environments |
Short-Circuit Withstand Capacity | ≥150% rated current for 30s | Enhanced capacity for heavy industrial use |
Protection Level | IP20/IP23 | Custom IP ratings for harsh conditions |
This nonlinear load isolation transformer serves a wide range of operations: industrial rectification systems for electroplating and electrolysis facilities; motor speed control systems for SCR drives in pumps, fans, and machine tools; power conversion equipment including inverters and UPS systems; heavy-duty machinery for steel mills, chemical plants, and mining operations; and grid-sensitive installations including precision manufacturing facilities and data centers.
Every YAWEI industrial SCR drive isolation transformer is manufactured in strict accordance with international standards including IEEE 519 and IEC 61000. All units undergo rigorous in-house testing (insulation resistance, voltage withstand, full load performance) before delivery. Our vertically integrated production system enables full control over material selection and quality validation, ensuring consistent, reliable performance.
With over 30 years of specialized industrial transformer manufacturing expertise, YAWEI is a trusted provider for industrial and commercial operators worldwide. We offer fully customizable solutions, a 99.5% on-time delivery rate, short production cycles, and extended warranty options. Our in-house engineering team provides end-to-end technical support, from design consultation to post-installation maintenance.
It is engineered to handle harmonic distortion, voltage spikes, and frequent load changes of SCR systems, with specialized designs that general-purpose units do not include.
Our standard design typically reduces THD to ≤5%, with custom configurations available for stricter requirements.
Yes, it supports 150% rated load for 60 seconds, adapted to intermittent overloads of SCR-driven equipment.
Yes, we fully customize voltage, power rating, protection level, and environmental adaptations to your needs.
Ready to optimize your SCR system’s power quality and reliability? Contact our engineering team today for a free, no-obligation quote and custom technical assessment for your industrial SCR drive isolation transformer solution. We’ll design a unit that matches your exact operational requirements, compliance needs, and budget.
