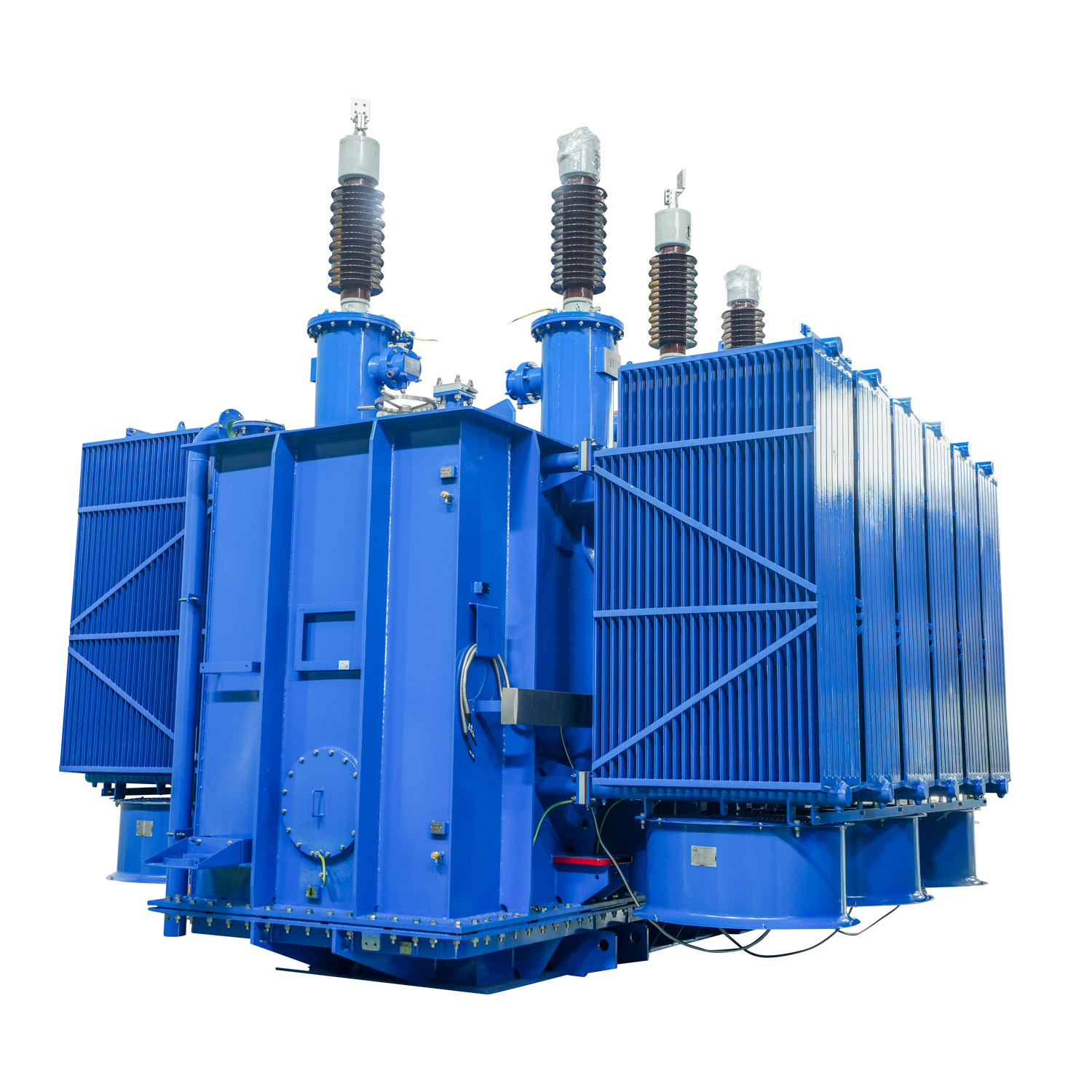

Selecting the ideal magnetic core goes far beyond standard design steps. It dictates the system's thermal reliability, operational efficiency, and spatial footprint. Engineers face increasing demands to handle complex electrical loads seamlessly. Matching the core material and topology to specific load profiles prevents premature saturation. It also safeguards against catastrophic inrush currents during grid fluctuations. For instance, continuous industrial power requires entirely different physical tolerances than highly variable renewable energy systems. You need a targeted, specialized approach. An optimized Iron Core Transformer serves as the fundamental backbone of commercial and industrial electrical distribution networks. In this guide, you will learn how to balance magnetic properties against load profiles. We will explore structural topologies to optimize geometry and reduce spatial constraints. Finally, you will discover the quality indicators needed to evaluate manufacturing precision and mitigate cumulative core losses effectively.
Material dictates efficiency: Cold Rolled Grain Oriented (CRGO) steel remains the industrial standard for mitigating hysteresis, while amorphous cores dominate continuous-load efficiency.
Geometry solves electrical flaws: Selecting between 3-limb, 4-limb, and 5-limb cores directly resolves zero-sequence flux and overheating risks in specific winding configurations.
Losses are cumulative: Eddy currents and magnetostriction (noise) must be engineered out through precise lamination thickness and step-lap mitred joints.
Manufacturing precision matters: The ultimate performance relies on the Iron Core Transformer manufacturer’s ability to control cut-surface flatness and insulation integrity.
Every electrical load behaves differently. A material that performs perfectly in a stable factory environment might fail rapidly in a volatile solar installation. You must align the microscopic properties of the core with the macro-level demands of the grid.
Cold Rolled Grain Oriented (CRGO) steel represents the undisputed baseline for heavy power applications. Manufacturers use a specialized cold-rolling process to align the metallic crystal structures parallel to the direction of the magnetic flux. This precise alignment of magnetic domains yields a nearly 30% increase in flux density compared to non-oriented steel. You get excellent permeability and lower hysteresis at standard 50Hz or 60Hz frequencies.
When making a decision, consider CRGO as the best choice for standard industrial budgets. It provides outstanding long-term mechanical stability. It withstands heavy physical vibrations and handles immense magnetic forces during short-circuit events without degrading.
Modern continuous-duty systems demand higher efficiency. Solar arrays and wind inverters face thousands of shifting magnetic cycles daily. Amorphous alloys excel in these environments. They lack a rigid crystalline lattice. Instead, rapid cooling during production gives them a randomized atomic structure. This structure creates an ultra-low hysteresis loss advantage. The magnetic domains reorient themselves with minimal energy friction.
However, implementation carries specific risks. Amorphous alloys exhibit intense mechanical brittleness. They shatter or degrade under mechanical stress far easier than standard silicon steel. Furthermore, the higher upfront cost requires a thorough engineering justification based on continuous load profiles.
Standard iron falls short when dealing with high-frequency switching. In Switched-Mode Power Supplies (SMPS), operating frequencies push into the kilohertz or megahertz range. Standard laminated iron would melt from the resulting heat. Ferrite and powdered iron cores solve this.
These materials possess massive electrical resistance. They naturally block internal currents. However, they are highly prone to early magnetic saturation. Powdered iron counteracts this by integrating microscopic, distributed air gaps between insulated iron particles. These built-in air gaps prevent immediate saturation, even when a heavy Direct Current (DC) bias is present.
Material Type | Primary Advantage | Ideal Application | Key Limitation |
|---|---|---|---|
CRGO Silicon Steel | High flux density & durability | Industrial power distribution | Moderate hysteresis losses |
Amorphous Alloys | Ultra-low energy loss | Renewable energy inverters | Mechanical brittleness |
Powdered Iron | High-frequency stability | SMPS / High-frequency electronics | Early magnetic saturation |
Material alone does not determine performance. The physical geometry of the magnetic path directly impacts heat generation, space requirements, and fault tolerance. Choosing the wrong shape often leads to cascading electrical failures.
The fundamental physical architecture dictates how magnetic flux behaves around the coils. You generally choose between two primary topologies:
Core-Type Construction: The copper coils surround the steel core. Engineers favor this design because it leaves the windings exposed. This exposure makes the unit easier to insulate, inspect, and cool. However, core-type designs remain inherently prone to higher leakage flux because the magnetic path is less contained.
Shell-Type Construction: The steel core entirely surrounds the primary and secondary coils. The center limb handles the combined flux and requires twice the cross-sectional area of the outer limbs. This topology provides vastly superior flux containment and robust mechanical protection. It perfectly suits low-voltage, high-current environments where heavy electromagnetic forces act upon the windings.
Three-phase power systems require careful limb selection to manage unbalanced loads effectively.
Operating a standard 3-limb core in an unbalanced Wye-Wye (Y-Y) connection introduces severe operational risks. During unbalanced faults, zero-sequence magnetic flux generates heavily. A 3-limb design lacks a designated steel return path for this specific flux. Consequently, the magnetic field escapes the core and travels through the external oil and steel tank walls. This phenomenon causes extreme, localized tank heating and rapid insulation failure.
The industry solved this by establishing the 5-limb core as the modern standard for distribution networks. The two additional outer limbs provide a direct, low-reluctance return path for zero-sequence flux. They handle unbalanced loads smoothly without dangerous tank heating. Furthermore, because the outer limbs share the magnetic load, engineers can reduce the overall thickness of the top and bottom yoke material by nearly 50%. This creates a more compact, efficient profile.
Energy disappears inside the core through multiple microscopic mechanisms. If you fail to evaluate and restrict these losses, your system will suffer from continuous overheating and distorted power quality.
Alternating magnetic fields induce circulating currents directly inside the steel. We call these eddy currents. They generate massive amounts of waste heat. To fight this, engineers slice the steel into extremely thin sheets.
We rely on laminations typically measuring between 0.25mm and 0.5mm thick. Each metal sheet receives a coating of dielectric varnish before stacking. This varnish acts as an electrical insulator. It restricts internal circulating currents to microscopic individual paths, slashing the total heat generated.
When setting your evaluation criteria, consider thickness carefully. Specifying ultra-thin laminations significantly increases upfront manufacturing costs. However, it drastically lowers high-frequency heat generation. You must weigh the operational frequency against the initial budget.
Magnetic saturation occurs when the steel cannot hold any more magnetic flux. At this point, the core acts almost like air. The inductance plummets, and the equipment draws exponential amounts of current.
Operating below the nominal frequency pushes the core dangerously close to this limit. Encountering a DC offset similarly pushes the core into asymmetrical saturation. Both scenarios severely distort the output waveforms. The resulting harmonics can destroy sensitive downstream electronics.
Zero-crossing energization poses an even greater threat. If you switch the system on exactly when the alternating voltage crosses zero, the resulting magnetic flux does not center itself. Instead, it doubles in magnitude in one direction. This asymmetric flux doubling triggers severe inrush currents, sometimes 10 to 40 times the normal load current. A properly specified Iron Core Transformer maintains a strict saturation induction limit. You must engineer enough margin to absorb this temporary flux doubling without melting the windings.
Protective relays and measurement meters require entirely different core behavior. They do not transmit heavy power. They transmit signals. For precision measurement, the core material must maintain a highly linear B-H (Magnetic Flux Density vs. Magnetic Field Strength) curve. It must exhibit high permeability even under extremely weak excitation currents. If the core requires too much energy just to magnetize, it will steal energy from the signal. This distorts the reading and blinds protective relays to dangerous grid faults.
You cannot judge a magnetic structure solely on a schematic. Real-world applications introduce physical constraints. Acoustic noise and chronic heat buildup dictate long-term project success just as much as electrical specifications.
Large electrical equipment hums. This familiar noise rarely comes from loose parts. It originates deep within the metal through a process called magnetostriction. As alternating current energizes the core, the internal magnetic domains rapidly align and realign. This causes the steel to physically expand and contract on a microscopic level.
In a standard 60Hz grid, this constant expansion and contraction creates a persistent 120Hz operational hum. In noise-sensitive deployments—like hospital basements or corporate office data centers—this acoustic emission becomes a critical failure point. As a strict decision factor, you must specify step-lapped core joints or continuous toroid configurations for these environments. Toroidal shapes lack sharp corners, which significantly dampens acoustic vibrations.
Heat stands as the ultimate enemy of electrical insulation. Engineering realities show a harsh truth: poor thermal dissipation can reduce a transformer’s lifecycle by an astonishing 50%. Every 10-degree Celsius increase above the rated thermal limit cuts the insulation's operational lifespan in half.
You must establish a rigorous shortlisting framework. Prioritize heat management from day one. Thicker cores require heavy oil volumes to stay cool, inflating your spatial footprint. A highly efficient core design reduces baseline no-load losses. Less wasted energy means less heat. A cooler system preserves the cellulose insulation paper inside the windings, ensuring the unit survives its full 20-to-30-year expected lifespan without a catastrophic thermal breakdown.
The finest steel in the world loses its properties if handled poorly during assembly. Procurement teams must look past the theoretical specifications. You need to inspect the actual manufacturing floor practices. Superior performance relies heavily on human precision and automated consistency.
Precision in Core Assembly (Step-Lap Joints): Evaluate exactly how the manufacturer assembles their laminations. Do not accept basic butt joints where edges just meet flatly. Look for "step-lap mitred" joints. In this process, workers interlock 5 to 7 varying sheets into a single "book" before stacking. This intricate staggering drastically reduces air gap reluctance. It smooths the flux transition around corners and prevents localized hot spots.
Cut Surface Flatness and Burr Control: The slitting machines that cut the steel must remain razor-sharp. If blades dull, they leave microscopic burrs on the lamination edges. When stacked under immense pressure, these metallic burrs pierce through the dielectric varnish. They effectively short-circuit the laminations together, bypassing the insulation coating and re-establishing massive eddy current paths.
Automated Handling Tolerance: Partnering criteria must extend to mechanical handling. A qualified Iron Core Transformer manufacturer demonstrates strict Quality Assurance (QA) tolerances. They utilize automated core stacking machinery. Manual hammering or dropping of silicon steel introduces severe physical stress. This mechanical stress alters the crystalline structure and permanently degrades the metal's magnetic permeability. Automation prevents this invisible damage entirely.
Selecting the right core represents a complex engineering balancing act. You must constantly weigh hysteresis and eddy current losses against mechanical constraints and spatial limitations. A material that excels in high-frequency switching will fail under heavy industrial distribution loads. Likewise, ignoring structural geometry opens the door to dangerous zero-sequence flux heating.
To secure a reliable system, take proactive next steps. Always encourage buyers and engineering teams to request detailed B-H curve data before finalizing procurement. Demand transparent loss-per-kg metrics mapped against your specific operational frequencies. Finally, verify the joint assembly specifications from your manufacturing partners to ensure theoretical efficiency survives the factory floor.
A: To interrupt and minimize internal eddy currents caused by fluctuating magnetic fields, which would otherwise convert electrical energy into massive amounts of waste heat.
A: Applying voltage beyond the rated limit, operating at frequencies lower than designed, or the presence of a DC bias. Saturation leads to exponential current draw and severe overheating.
A: Yes, for specific applications (like Y-Y grounding setups). It provides a dedicated return path for zero-sequence magnetic flux, eliminating the tank heating issues inherent to 3-limb designs during unbalanced faults.
