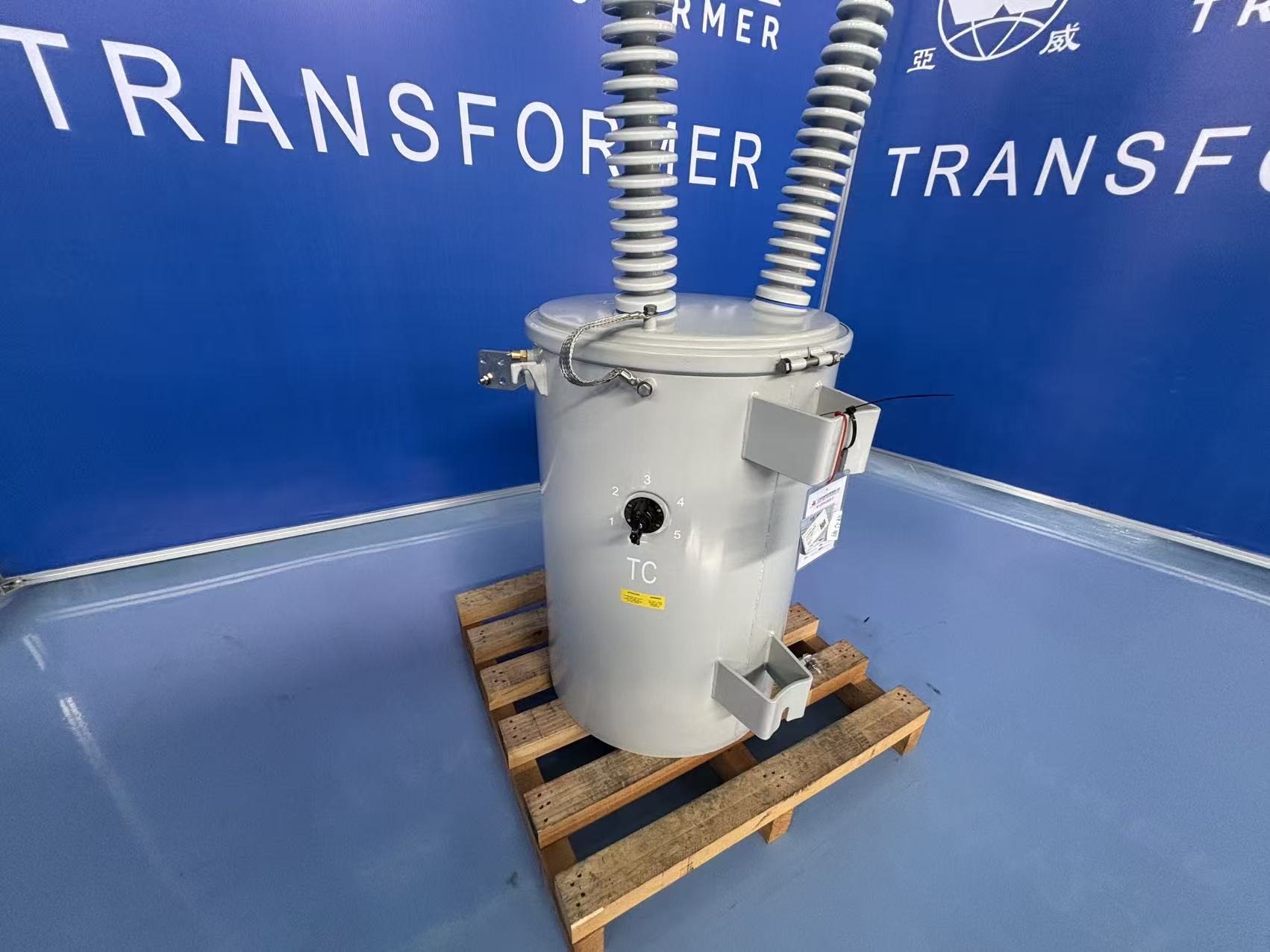

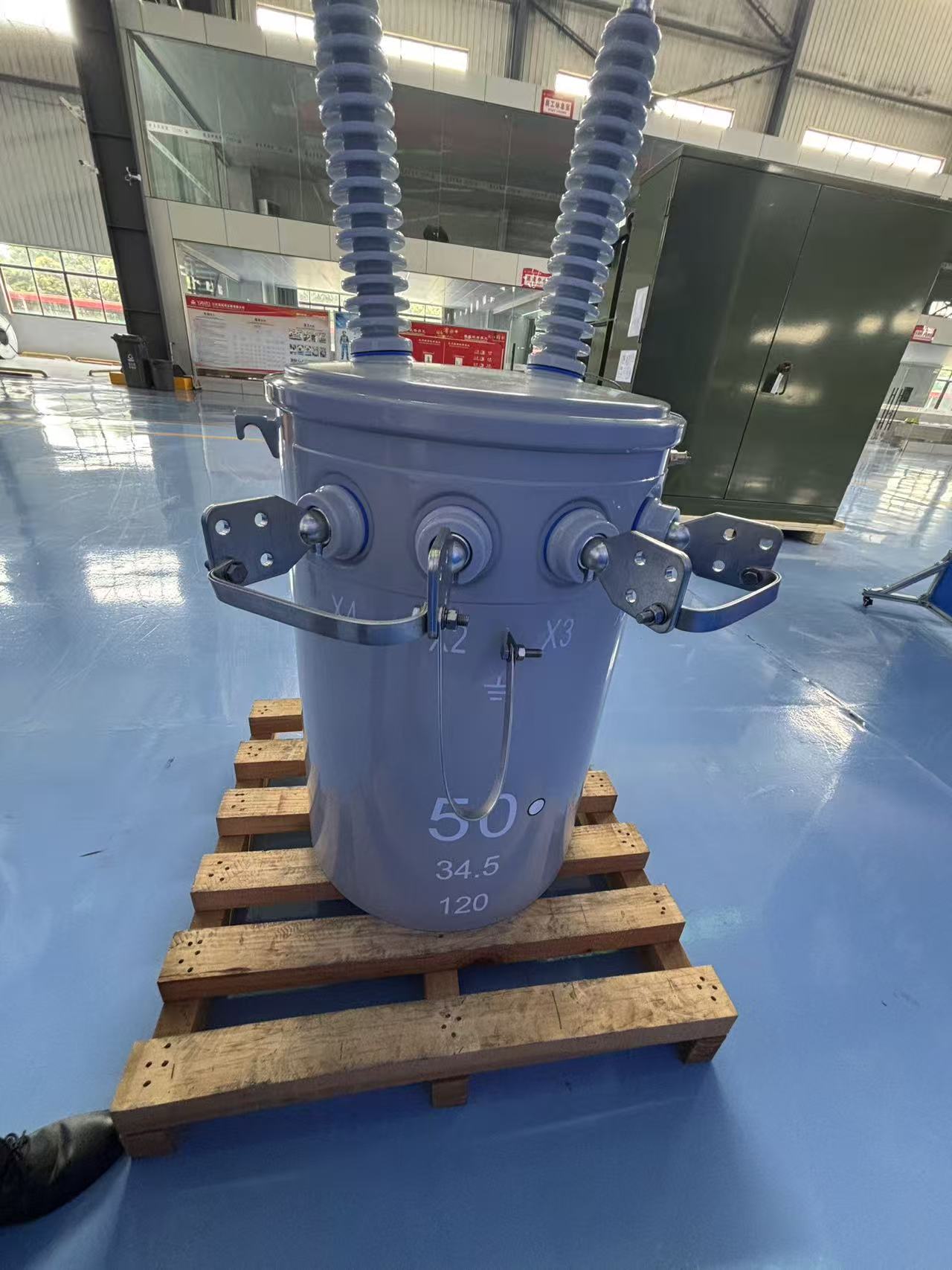

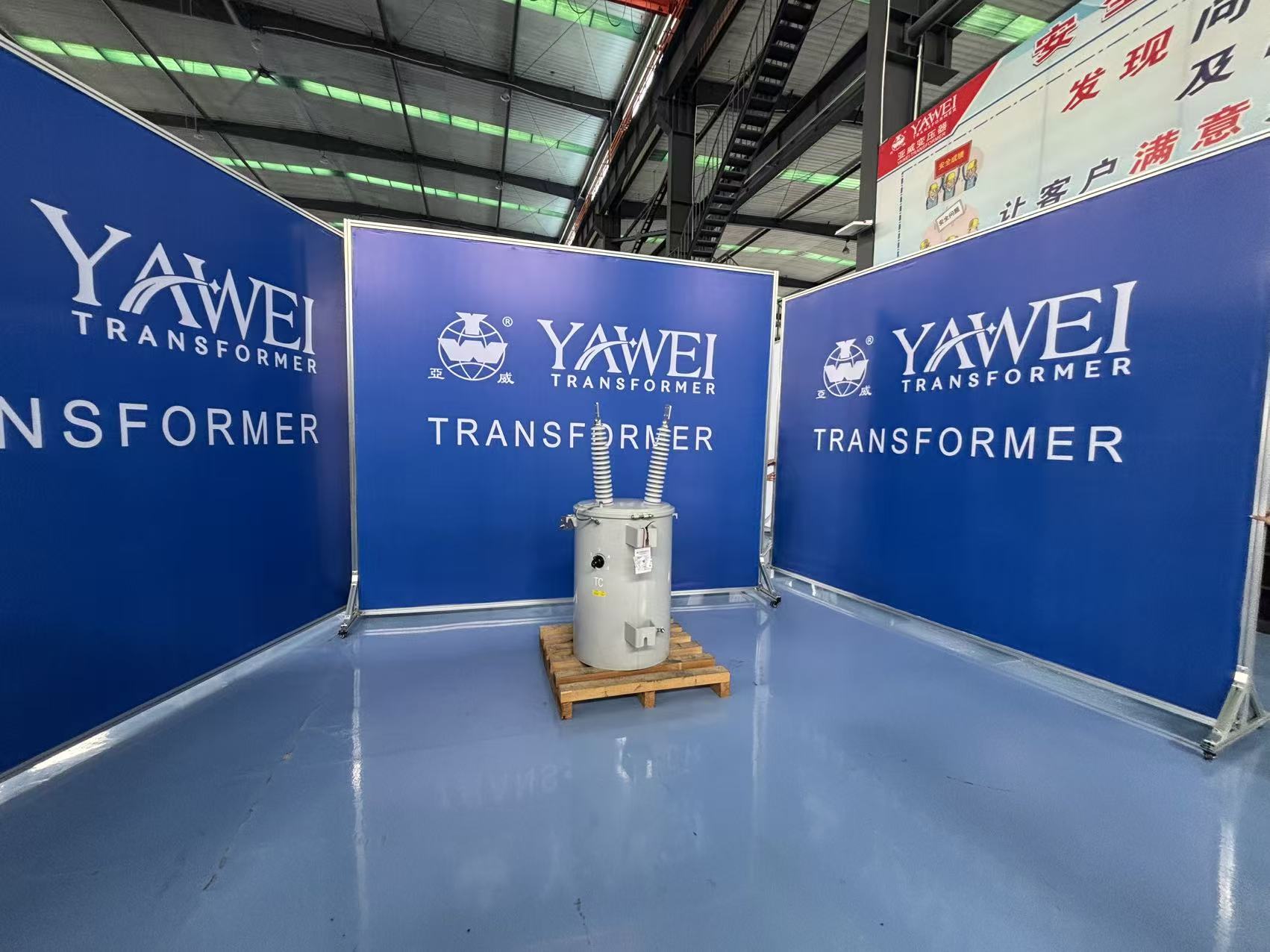

50kva energy save pole mounted transformer for US&Canada market

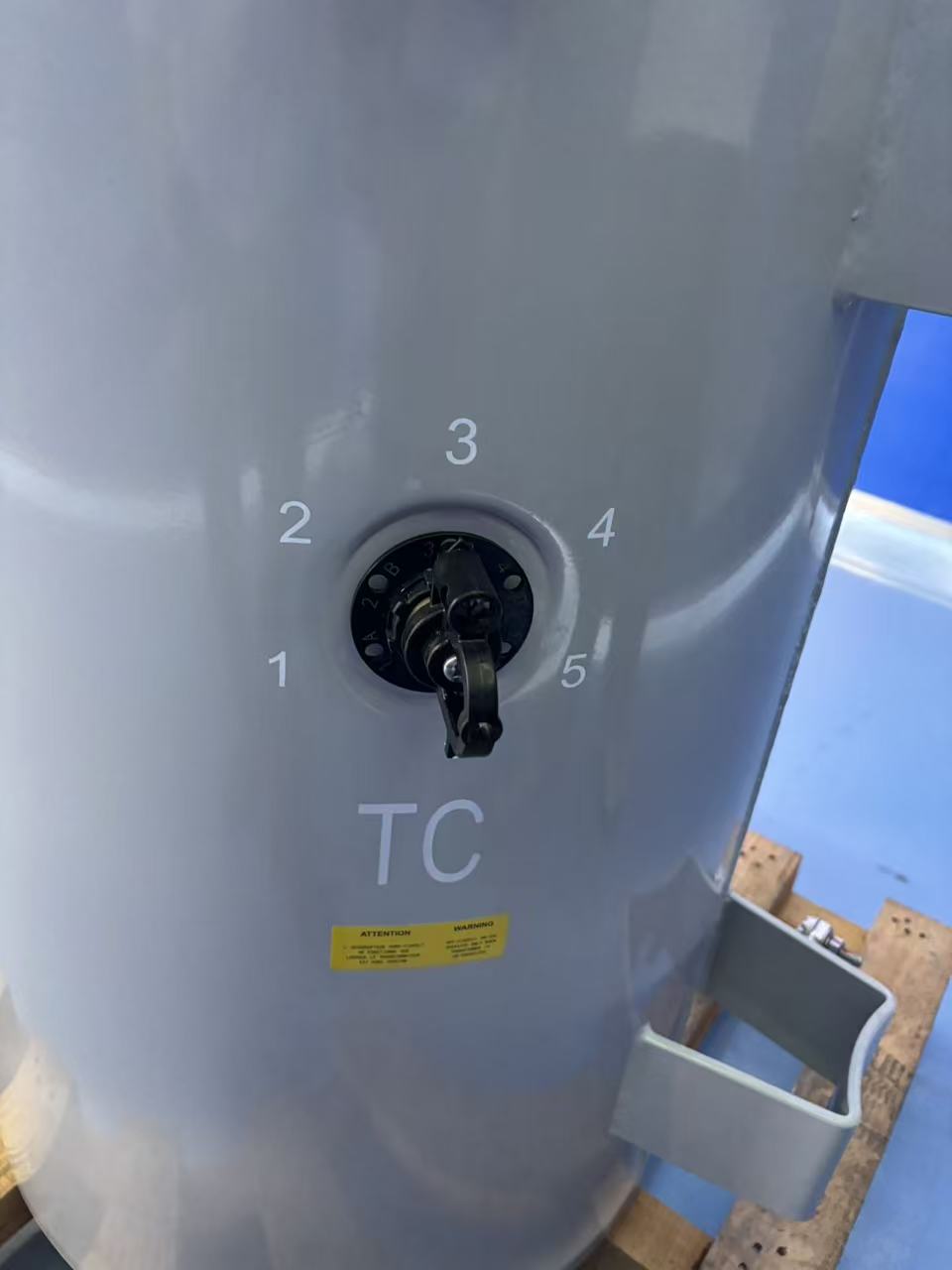

Single-phase oil-immersed tank transformers for US export adopt ONAN natural cooling design, compatible with America’s 60Hz power grid, and fully comply with ANSI, IEEE, NEMA and DOE energy efficiency standards as well as UL safety certifications. They support two installation types: pole-mounted and pad-mounted. Available capacities range from 10kVA to 250kVA. High-voltage sides match mainstream distribution voltages including 7.2kV, 13.2kV and 24.94kV. The standard low-voltage output is 120/240V for residential three-wire systems, while 240/480V industrial specifications can be customized. A ±2×2.5% off-circuit tap changer is equipped to cope with grid voltage fluctuations.
The core is made of high-permeability grain-oriented silicon steel or amorphous alloy to cut no-load loss drastically. Windings are available in pure copper or aluminum with Class H insulation (180°C temperature resistance) and a 65K temperature rise limit, enabling 1-hour operation under 120% short-time overload. The integrally welded steel tank features anti-corrosion coating and an arched waterproof top, fitted with HV bushings, arrester mounting seats, oil drain sampling valves and lifting lugs for reliable outdoor operation in rainy and saline-alkali areas.
The unit undergoes vacuum oil filling with mineral insulating oil or eco-friendly natural ester oil for superior insulation and heat dissipation. Full type tests including voltage withstand, short-circuit, loss and polarity tests are completed before delivery. Widely applied to suburban residences, small stores and scattered rural distribution networks across the US, these compact, low-maintenance transformers boast a service life of over 20 years and deliver stable long-term power supply meeting North American grid requirements.
