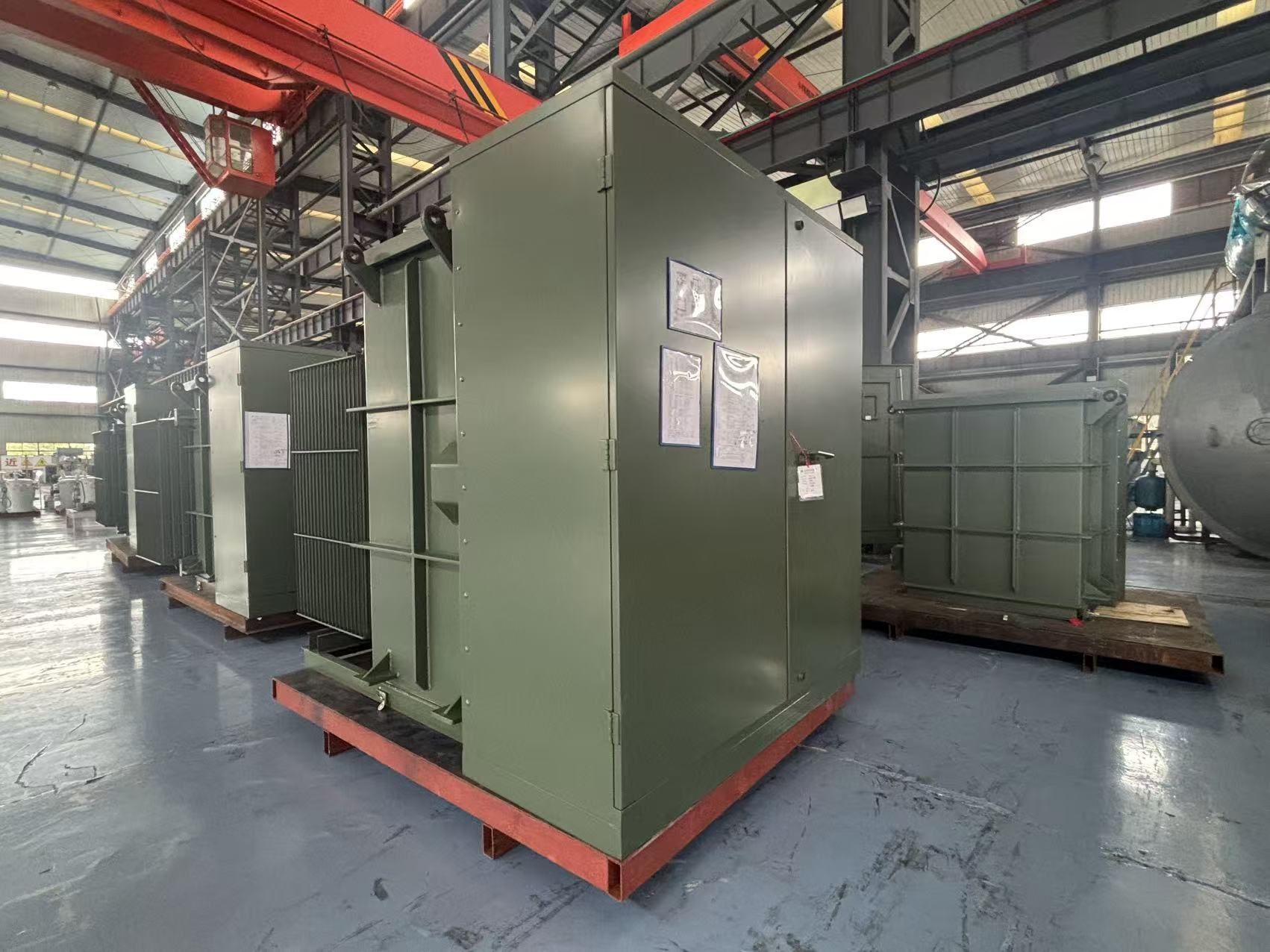

ZGSL-3300kva Three Phase Pad Mounted Transformer
1.Product Overview

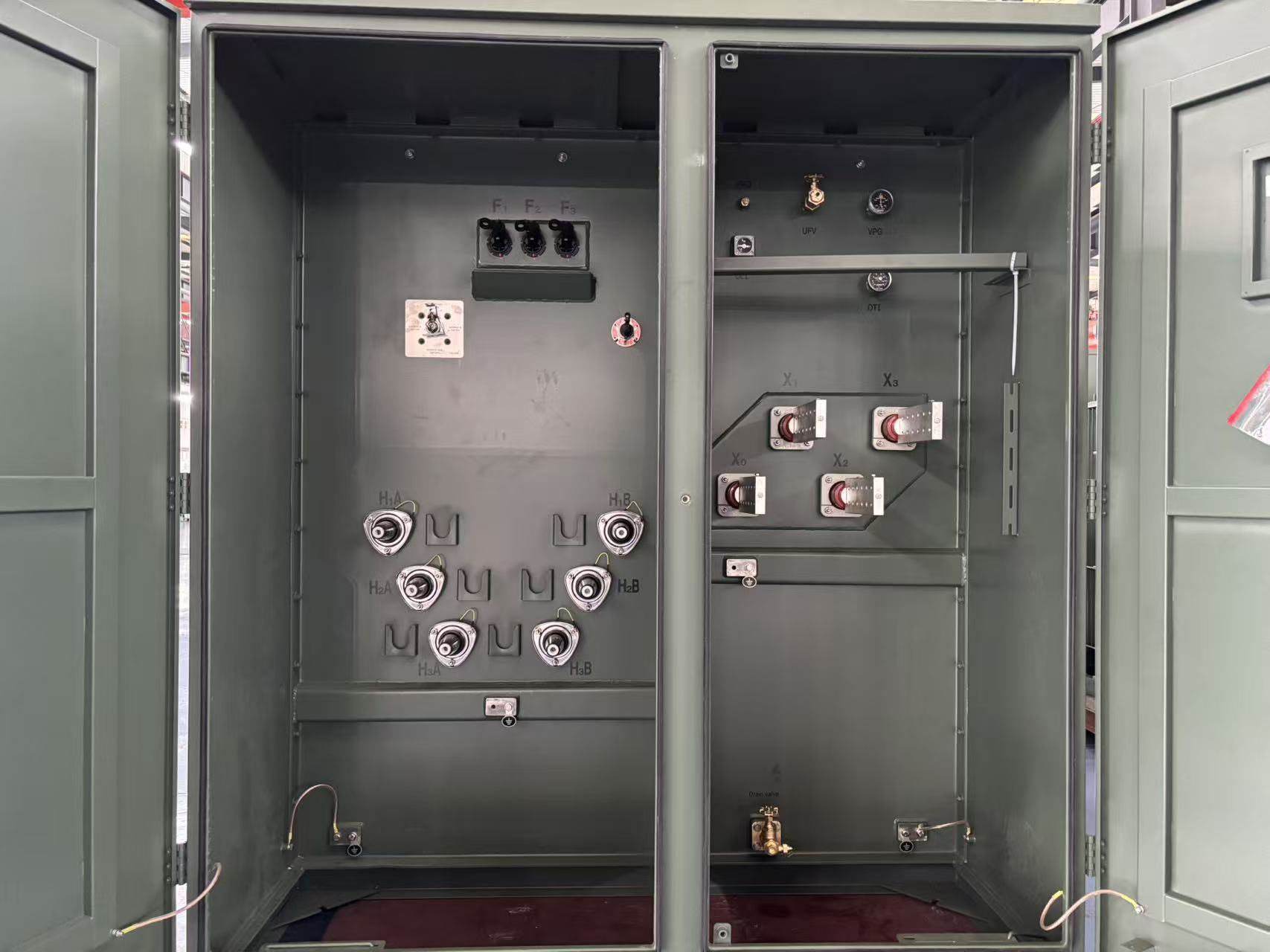

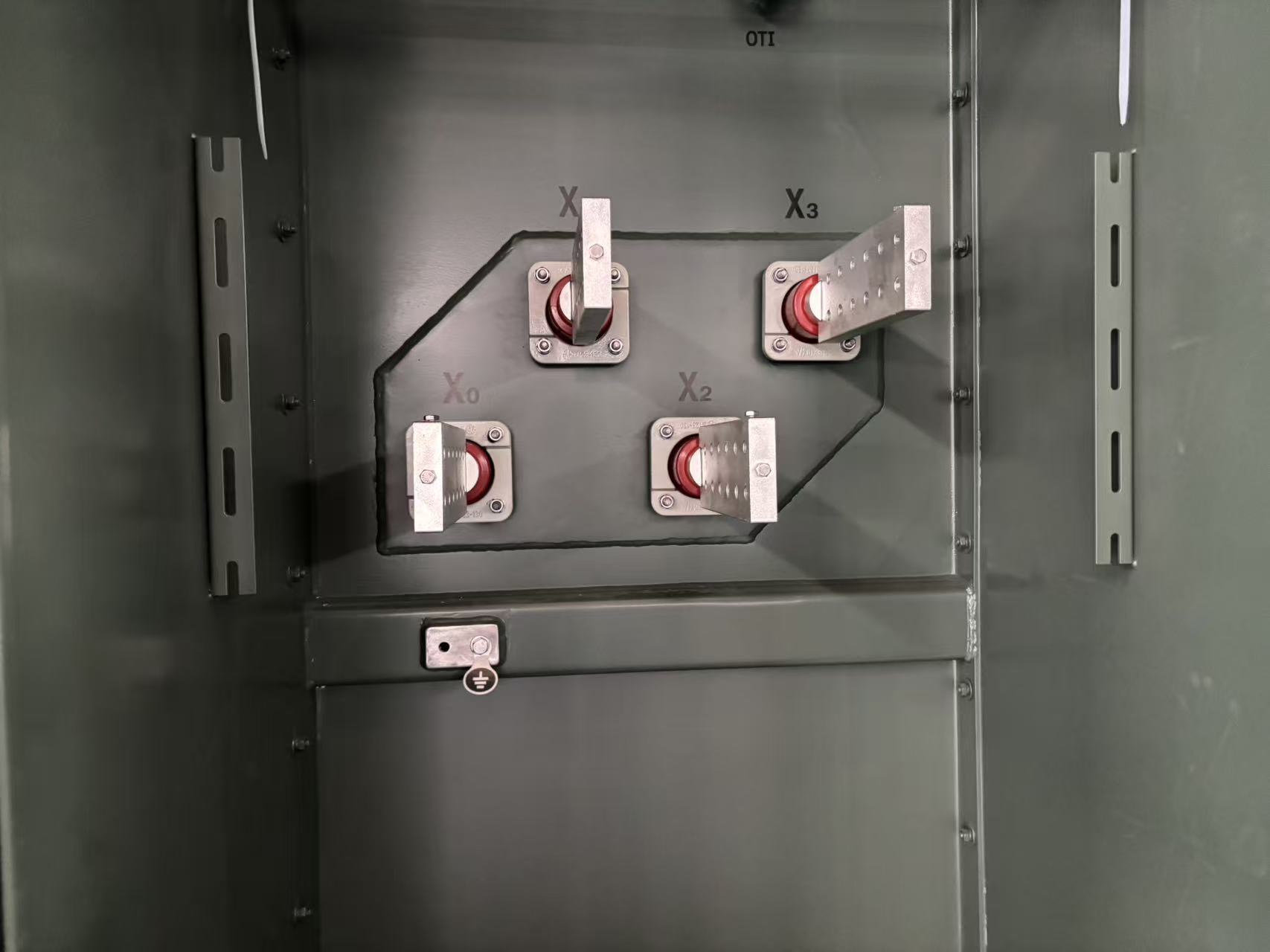

3300kVA American type pad-mounted transformer is an integrated, fully sealed, compact distribution power equipment. It integrates high-voltage load switch, fuse protection system, transformer core and winding, low-voltage distribution cabinet into one integral unit. This product adopts oil-immersed fully insulated structure, featuring small footprint, high safety and maintenance-free operation. It is widely applied for solar power plants, wind energy projects, industrial parks, urban grid renovation, commercial buildings and mining power supply systems.

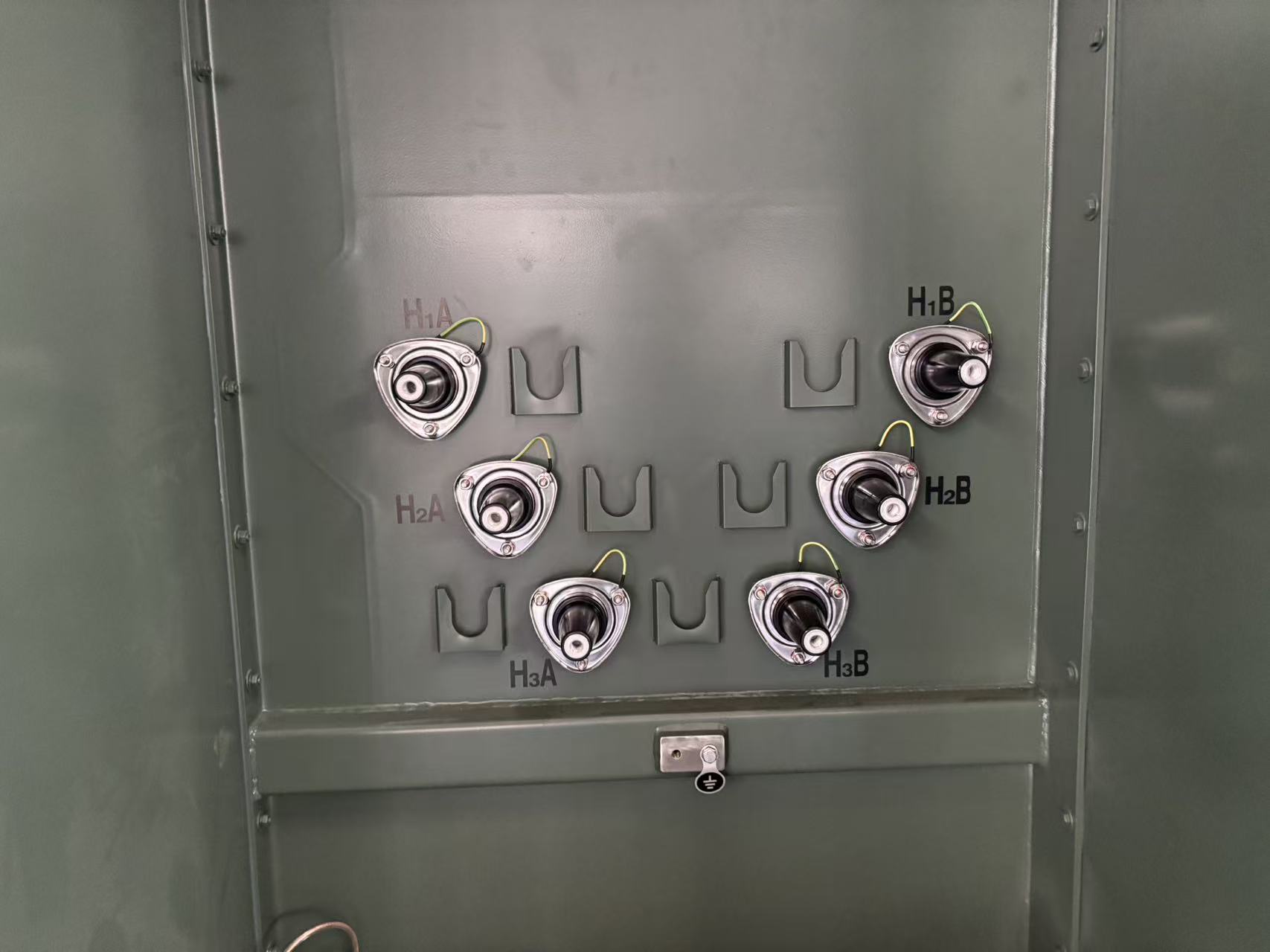

The standard model is ZGS11 / ZGS13-3300kVA, supporting terminal power supply and loop network power supply modes, which effectively improves power supply reliability.
2. Core Advantages
- Ultra-compact Structure: The volume is only 1/3 of the European-style box transformer with the same capacity, saving installation space and foundation construction cost.
- Full Insulation & Full Sealing: All high-voltage live parts are immersed in transformer oil. The whole machine is dust-proof, waterproof and corrosion-resistant with IP43 protection grade, suitable for outdoor long-term operation.

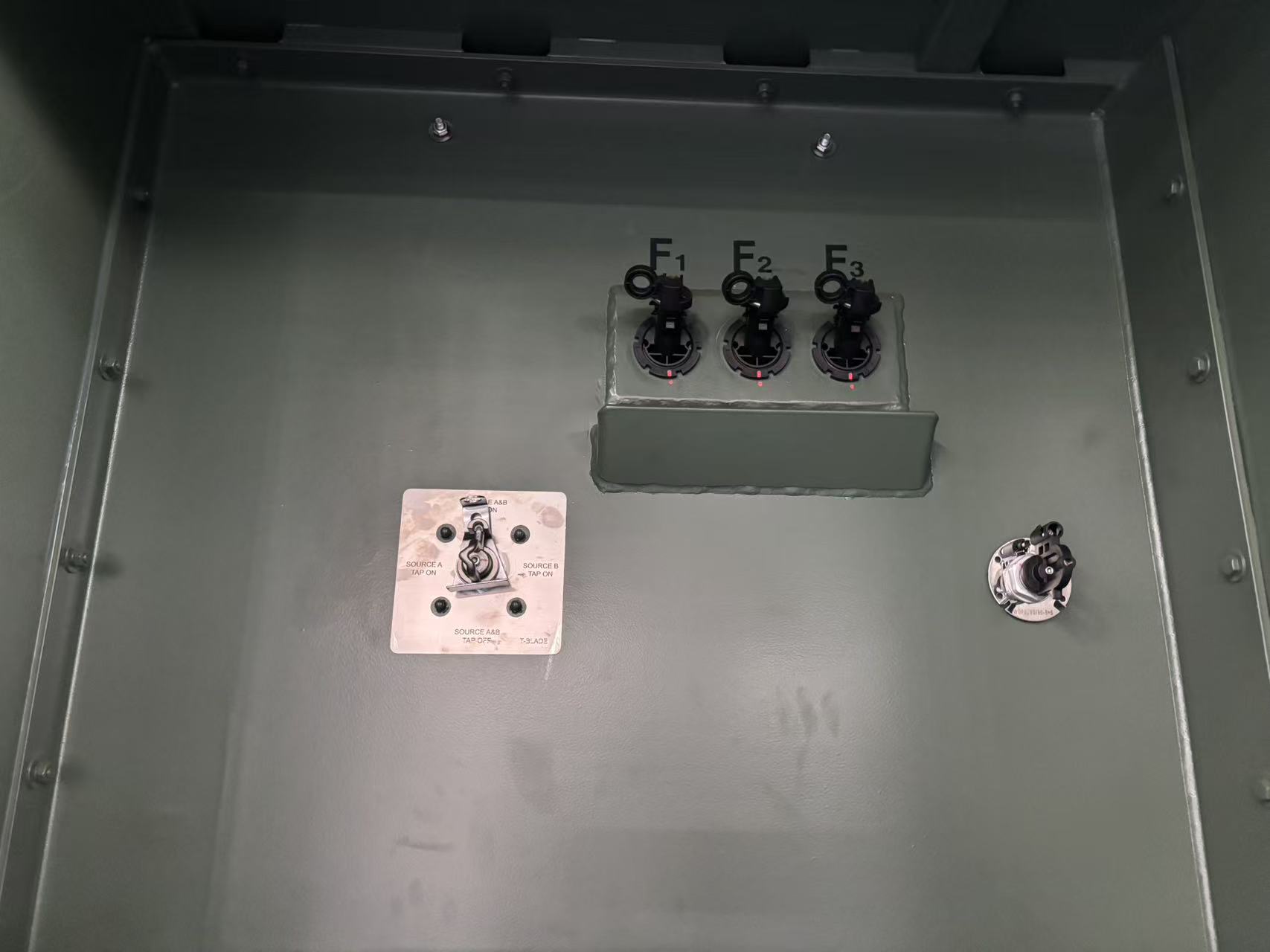

- High Safety Performance: Equipped with double fuse protection for short circuit and overload protection. With interlock protection device to avoid mis-operation and ensure personal and equipment safety.
- Stable Heat Dissipation: Adopts corrugated radiator and natural oil circulation cooling (ONAN), stable operation under high temperature environment.
- Maintenance-free Design: No oil conservator structure, automatic compensation for oil volume expansion and contraction, effectively preventing oil leakage and reducing daily maintenance work.
3. Standard Technical Parameters
- Rated Capacity: 3300kVA
- Voltage Level: 10kV / 0.4kV (20kV / 35kV / 0.69kV customizable)
- Vector Group: Dyn11
- Cooling Method: ONAN (Oil Natural Air Natural)
- Impedance Voltage: 6%
- Protection Grade: IP43
- Voltage Regulation: Off-circuit tap changer
- Winding Material: Copper / Aluminum optional
- Execution Standard: GB/T 17467, IEC 61330, ANSI Standard
4. External Dimension & Weight
Overall Dimension (L × W × H): 3650mm × 2680mm × 2450mm
Foundation Reservation Size: 3750mm × 2750mm (Suggested)
Total Weight
- Copper winding: about 14.8 tons
- Aluminum winding: about 12.6 tons
Note: Customized size is available according to customer’s project requirements.
5. MOQ (Minimum Order Quantity)
MOQ: 1 Piece / 1 Unit
We support single unit production and customized service. No bulk order required. Each single order can be equipped with complete factory documents, including factory test report, certificate of conformity, installation drawing and operation manual. Bulk orders enjoy preferential price.
6. Application Scenarios
Widely used for photovoltaic power stations, wind power projects, industrial enterprise power distribution, urban community power supply, shopping malls, data centers, mining and outdoor industrial power supply occasions.
